Custom Vacuum Casting Services
Vacuum casting, also known as silicone casting or prototype casting, serves as an economical alternative to small-batch injection molding for plastic parts. This process achieves results similar to injection molding production, enabling rapid replication of 1-500 parts without the need for steel molds,which is very cost effective and efficient for fast marketing.

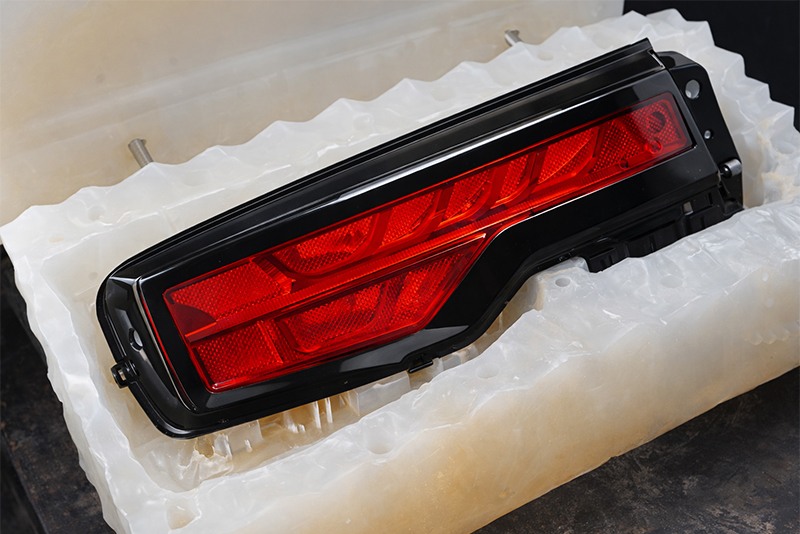

Vacuum-Casting-01
How does Vacuum Casting works

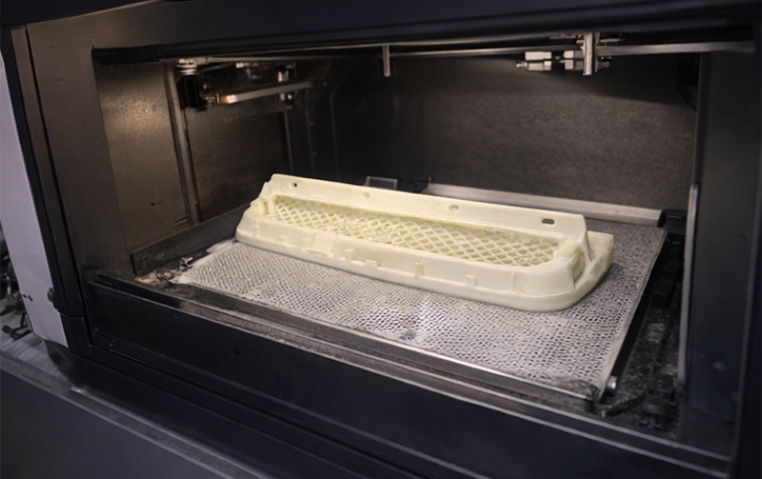

Master built in CNC or SLA

Master built in CNC or SLA

Prototype is made by CNC or 3D printing, used as the master for silicone tooling.

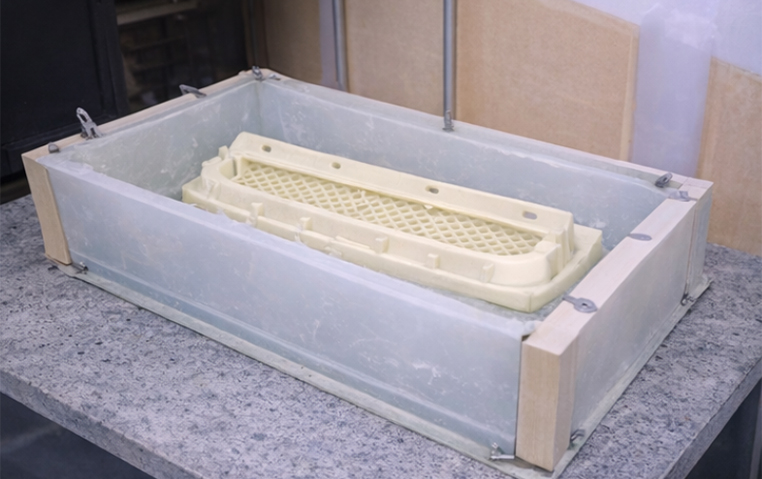

Making PU Mold

Making PU Mold

Liquid silicone is poured over the prototype to create a detailed silicone mold once fully cured.

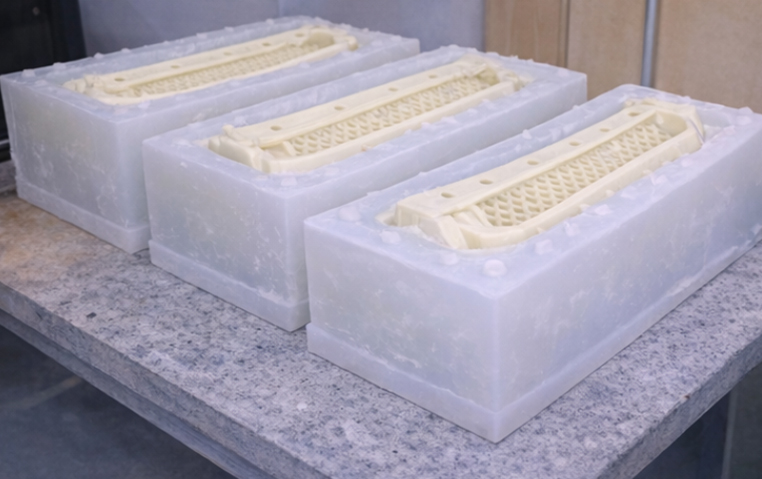

Demolding

Demolding

The cured silicone mold is opened and the master part is removed, preserving all surface and dimensional features.

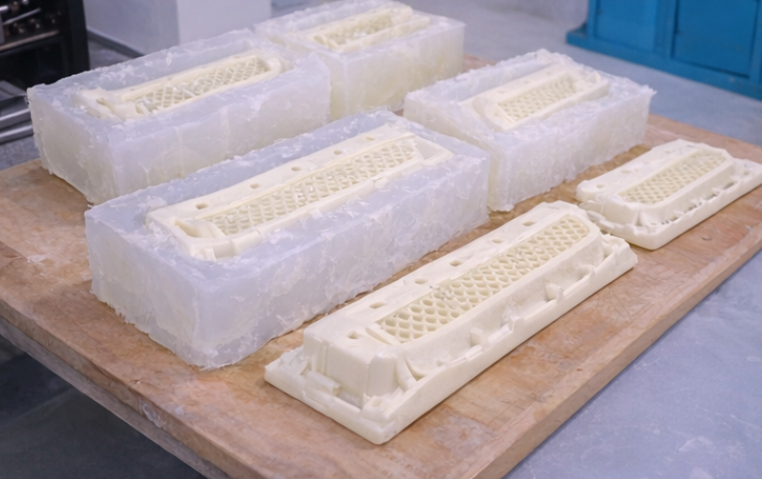

Duplicate Fabrication

Duplicate Fabrication

Casting material is poured into the silicone mold to produce low-volume parts that closely resemble the final production components.

Technical Specifications

Standard lead time
Up to 20 copies within 10 working days
Standard accuracy
±0.2% (with a lower limit on ± 0.2 mm on dimensions smaller than 100 mm)
Minimum wall thickness
To ensure that the mold is filled properly, a wall thickness of at least 0.75 mm is necessary. For best results, we recommend a wall thickness of at least 1.5 mm
Maximum part dimensions
The size of the mold is limited by the dimensions of the vacuum chamber (1900 x 900 x 750 mm) and by the volume of the product (maximum volume: 10 liters)
Typical quantities: 10-50pcs
Surface structure: Painting/Electroplating
High-quality surface finish comparable to injection molding
Why choose Vacuum Casting with Weytek?

Why choose Vacuum Casting with Weytek?

Parts can be made minimum from 72 hours,allowing for faster design iterations and speed to market for small batch production. Used for low volume prototypes, low volume production, rubber parts, market testing, rapid iterations

Quality Assurance

Specialize in custom plastic Vacuum Casting to boost the functionality and visual appeal of your components. Our expert team and advanced technology deliver seamless bonds between materials, ensuring top-quality results.

Diverse Post-treatment

Generally the parts that come out directly from the silicon mold may need some post-treatment like painting or silk screen. As your one stop partner you can find a wide range of finishes for your projects.

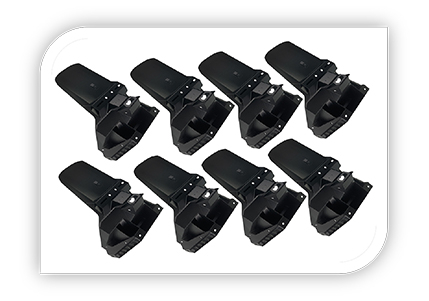

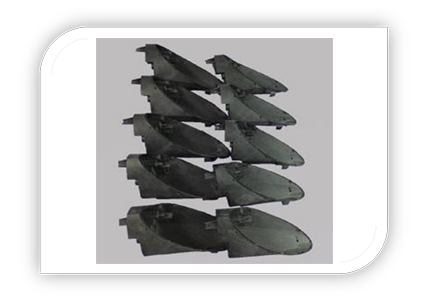

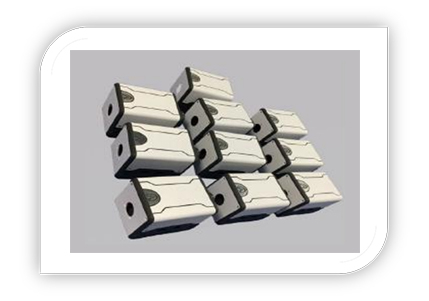

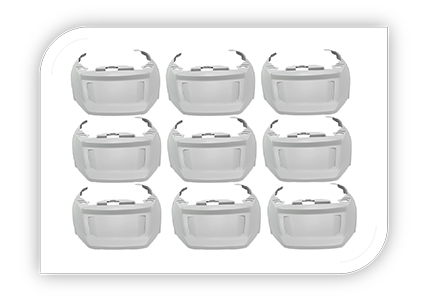

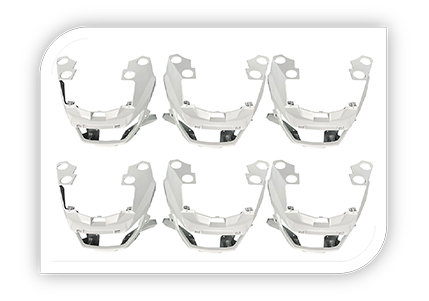

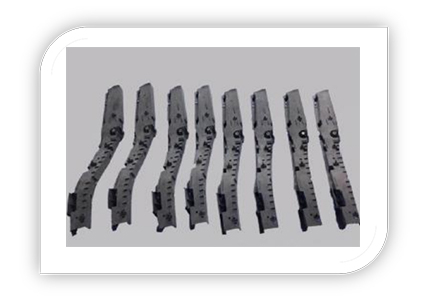

Vacuum Casting Parts Picture Display
  • Car Interior
  • Housing
  • Housing
  • Stripe
  • Housing
  • Light Fender
Ready to Consult Your Vacuum Casting Parts?
Need parts for test uregntly? Have question about the design? Want a fast inquiry? Weytek delivers vacuum casting services for low volume prototypes, low volume production, rubber parts, market testing, rapid iterations We have lots of sucessful cases regarding of this process, such as: Overmoulding (Premade parts are placed into the mold to mold over them together. Such as:Instrument board) and 2 colors silicon mold (A silicon mold that fabricates two different colors for parts.Such as: Automotive lamp. )
